1.1.1. Uranie modules organisation

The platform consists of a set of so-called technical libraries, or modules (represented as green boxes in Figure 1.1), each performing a specific task.

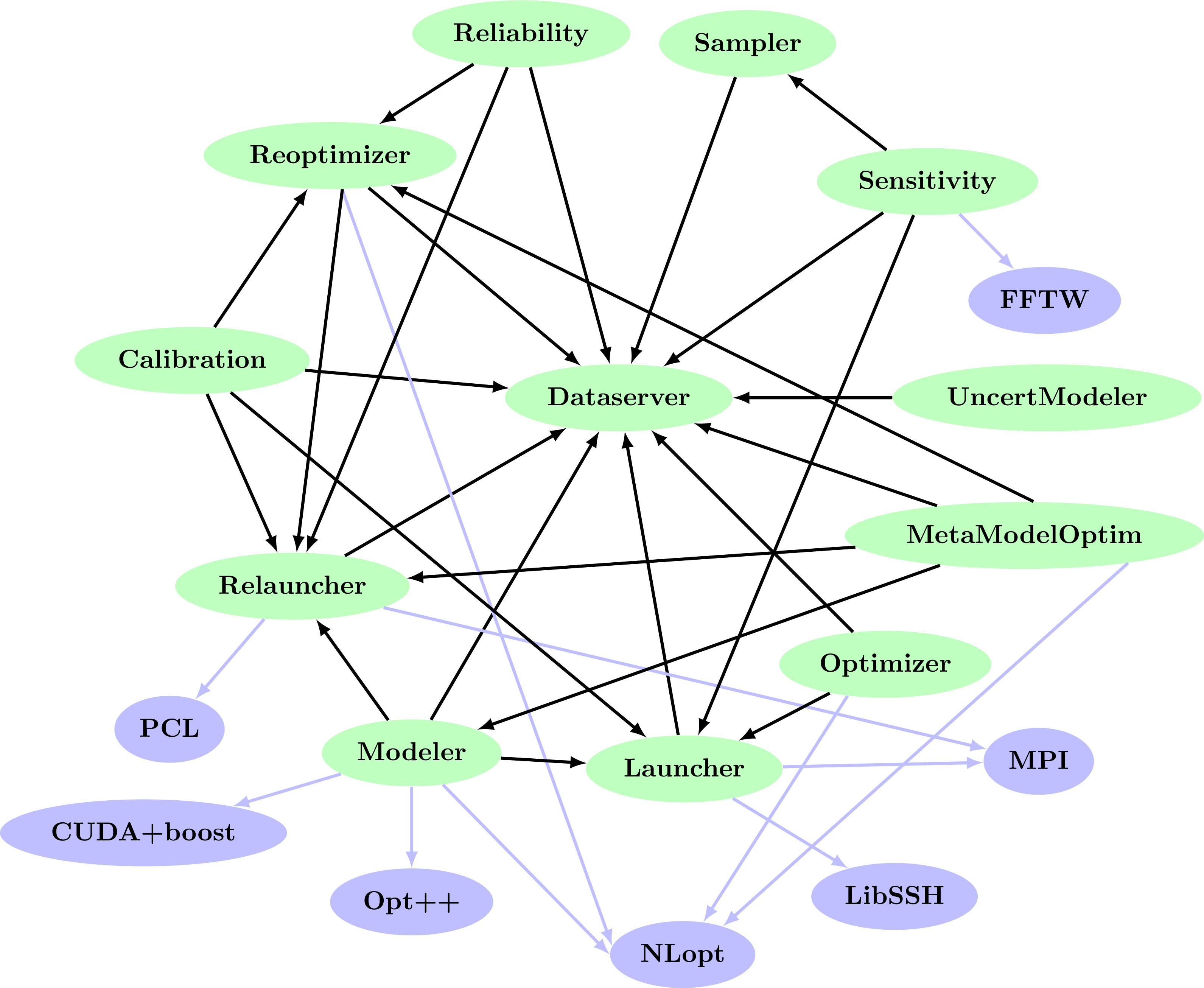

Figure 1.1 Organisation of the Uranie-modules (green boxes) in terms of inter-dependencies. The blue boxes represent the external dependencies (discussed later on).

In the rest of this section each and every modules discussed in this documentation will be briefly described (in terms of role and main components) starting with the DataServer one, which is the spine of the Uranie project, as shown in Figure 1.1. A more precise description will then be done in the dedicated other chapters.

• 1.1.1.1. DataServer module
• 1.1.1.2. Sampler module
• 1.1.1.3. Launcher module
• 1.1.1.4. Modeler module
• 1.1.1.5. Sensitivity module
• 1.1.1.6. Optimizer and Reoptimizer modules
• 1.1.1.7. Relauncher module
• 1.1.1.8. Calibration module
