13.6.3. Macro “modelerFlowrateMultiLinearRegression.C”
13.6.3.1. Objective
The objective of the macro is to build a multilinear regression between the predictors \(r_{\omega}\), \(r\), \(T_u\), \(T_l\), \(H_u\), \(H_l\), \(L\), \(K_{\omega}\)
and a target variable yhat from the database contained in the ASCII file
flowrate_sampler_launcher_500.dat defining values for these eight variables described in
Presentation of the problem on 500 patterns. Parameters of the regression are then
exported in a .C file _FileContainingFunction_.C:
void MultiLinearFunction(double *param, double *res)
{
//////////////////////////////
//
// *********************************************
// ** Uranie v3.12/0 - Date : Thu Jan 04, 2018
// ** Export Modeler : Modeler[LinearRegression]Tds[tdsFlowrate]Predictor[rw:r:tu:tl:hu:hl:l:kw]Target[yhat]
// ** Date : Tue Jan 9 12:08:27 2018
// *********************************************
//
// *********************************************
// ** TDataServer
// ** Name : tdsFlowrate
// ** Title : Design of experiments for Flowrate
// ** Patterns : 500
// ** Attributes : 10
// *********************************************
//
// INPUT : 8
// rw : Min[0.050069828419999997] Max[0.14991758599999999] Unit[]
// r : Min[147.90551809999999] Max[49906.309529999999] Unit[]
// tu : Min[63163.702980000002] Max[115568.17200000001] Unit[]
// tl : Min[63.169232649999998] Max[115.90147020000001] Unit[]
// hu : Min[990.00977509999996] Max[1109.786159] Unit[]
// hl : Min[700.14498509999999] Max[819.81105760000003] Unit[]
// l : Min[1120.3428429999999] Max[1679.3424649999999] Unit[]
// kw : Min[9857.3689890000005] Max[12044.00546] Unit[]
//
// OUTPUT : 1
// yhat : Min[13.09821] Max[208.25110000000001] Unit[]
//
//////////////////////////////
//
// QUALITY :
//
// R2 = 0.948985
// R2a = 0.948154
// Q2 = 0.946835
//
//////////////////////////////
// Intercept
double y = -156.03;
// Attribute : rw
y += param[0]*1422.21;
// Attribute : r
y += param[1]*-3.07412e-07;
// Attribute : tu
y += param[2]*2.15208e-06;
// Attribute : tl
y += param[3]*-0.00498512;
// Attribute : hu
y += param[4]*0.261104;
// Attribute : hl
y += param[5]*-0.254419;
// Attribute : l
y += param[6]*-0.0557145;
// Attribute : kw
y += param[7]*0.00813552;
// Return the value
res[0] = y;
}
This file contains a MultiLinearFunction function. Comparison is made with a database generated
from random variables obeying uniform laws and output variable calculated with this database and the
MultiLinearFunction function.
13.6.3.2. Macro Uranie
TDataServer * tds = new TDataServer();
// Define the DataServer
TDataServer *tds2 = new TDataServer("tdsFlowrate", "Design of experiments for Flowrate");
tds->fileDataRead("flowrate_sampler_launcher_500.dat");
TCanvas *c = new TCanvas("c1", "Graph for the Macro modeler",5,64,1270,667);
TLinearRegression *tlin = new TLinearRegression(tds, "rw:r:tu:tl:hu:hl:l:kw", "yhat");
tlin->estimate();
tlin->exportFunction("c++", "_FileContainingFunction_", "MultiLinearFunction");
// Add the study attributes
tds2->addAttribute( new TUniformDistribution("rw", 0.05, 0.15));
tds2->addAttribute( new TUniformDistribution("r", 100.0, 50000.0));
tds2->addAttribute( new TUniformDistribution("tu", 63070.0, 115600.0));
tds2->addAttribute( new TUniformDistribution("tl", 63.1, 116.0));
tds2->addAttribute( new TUniformDistribution("hu", 990.0, 1110.0));
tds2->addAttribute( new TUniformDistribution("hl", 700.0, 820.0));
tds2->addAttribute( new TUniformDistribution("l", 1120.0, 1680.0));
tds2->addAttribute( new TUniformDistribution("kw", 9855.0, 12045.0));
Int_t nS = 1000;
// \test Générateur de plan d'expérience
TSampling *sampling = new TSampling(tds2, "lhs", nS);
sampling->generateSample();
gROOT->LoadMacro("_FileContainingFunction_.C");
// Create a TLauncherFunction from a TDataServer and an analytical function
// Rename the outpout attribute "ymod"
TLauncherFunction * tlf = new TLauncherFunction(tds2, "MultiLinearFunction","","ymod");
// Evaluate the function on all the design of experiments
tlf->run();
tds2->getTuple()->SetMarkerColor(kBlue);
tds2->getTuple()->SetMarkerStyle(8);
tds2->getTuple()->SetMarkerSize(1.2);
tds->getTuple()->SetMarkerColor(kGreen);
tds->getTuple()->SetMarkerStyle(8);
tds->getTuple()->SetMarkerSize(1.2);
tds2->draw("ymod:rw");
tds->draw("yhat:rw","","same");
The TDataServer is loaded with the database contained in the file flowrate_sampler_launcher_500.dat
with the fileDataRead method:
TDataServer * tds = new TDataServer();
tds->fileDataRead("flowrate_sampler_launcher_500.dat");
The linear regression is initialised and characteristic values are computed for each variable with
the estimate method:
TLinearRegression *tlin = new TLinearRegression(tds, "rw:r:tu:tl:hu:hl:l:kw", "yhat");
tlin->estimate();
The model is exported in an external file in C++ language _FileContainingFunction_.C where the
function name is MultiLinearFunction:
tlin->exportFunction("c++", "_FileContainingFunction_", "MultiLinearFunction");
A second TDataServer is created. The previous variables then obey uniform laws and are linked as
TAttribute in this new TDataServer:
tds2->addAttribute( new TUniformDistribution("rw", 0.05, 0.15));
tds2->addAttribute( new TUniformDistribution("r", 100.0, 50000.0));
tds2->addAttribute( new TUniformDistribution("tu", 63070.0, 115600.0));
tds2->addAttribute( new TUniformDistribution("tl", 63.1, 116.0));
tds2->addAttribute( new TUniformDistribution("hu", 990.0, 1110.0));
tds2->addAttribute( new TUniformDistribution("hl", 700.0, 820.0));
tds2->addAttribute( new TUniformDistribution("l", 1120.0, 1680.0));
tds2->addAttribute( new TUniformDistribution("kw", 9855.0, 12045.0));
A sampling is realised with a LHS method on 1000 patterns:
TSampling *sampling = new TSampling(tds2, "lhs", nS);
sampling->generateSample();
The previously exported macro _FileContainingFunction_.C is loaded so as to perform calculation
over the database in the second TDataServer with the function MultiLinearFunction. Results are stored
in the ymod variable:
gROOT->LoadMacro("_FileContainingFunction_.C");
TLauncherFunction * tlf = new TLauncherFunction(tds2, "MultiLinearFunction","","ymod");
tlf->run();
13.6.3.3. Graph

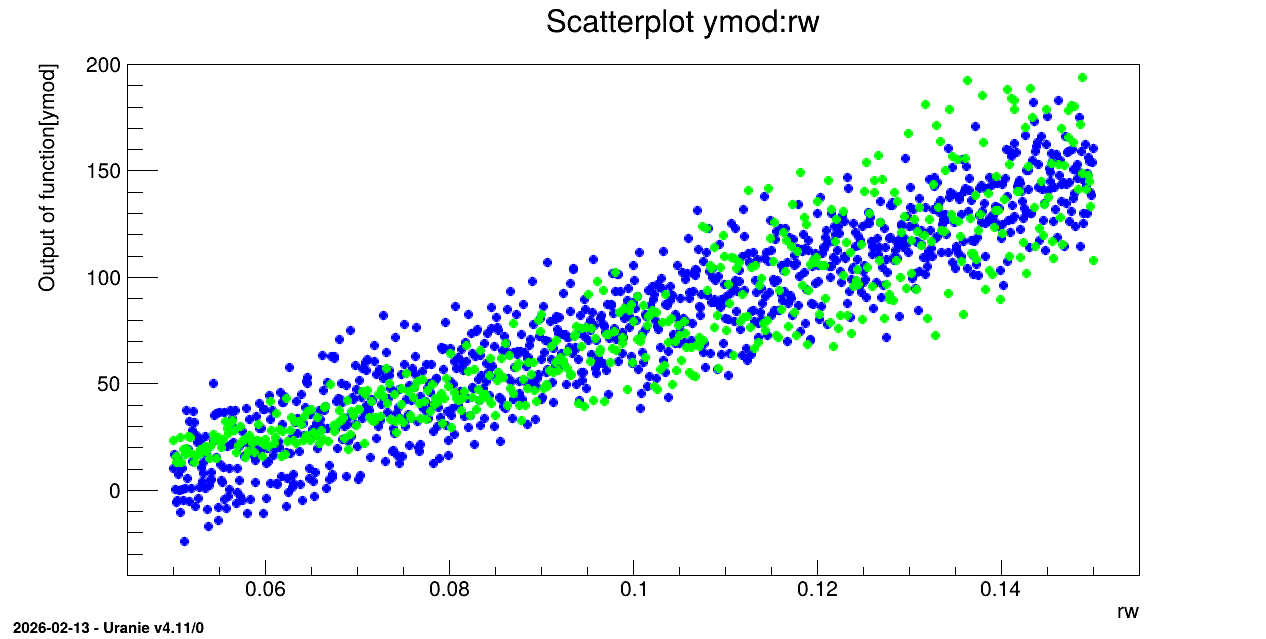

Figure 13.39 Graph of the macro “modelerFlowrateMultiLinearRegression.C”
