13.4.11. Macro “samplingMaxiMinLHSFromLHSGrid.py”

13.4.11.1. Objective

This macro shows the usage of the TMaxiMinLHS class in the case where it is used with an already provided LHS grid. The class itself can generate a LHS grid from scratch (on which the simulated annealing algorithm will be applied to get a maximin grid) but the idea for this macro is to do this procedure in two steps to be able to compare the original LHS grid and the results of the optimisation. The orginal design-of-experiments is done with two uniformly-distributed variables.

The resulting design-of-experiments presented is presented side-by-side with the original one and the mindist criterion calculated is displayed on top of both grid, for illustration purpose.

13.4.11.2. Macro Uranie

"""
Example of maximin lhs sample generation
"""
from URANIE import DataServer, Sampler
import ROOT

def niceplot(l_tds, l_lat, l_title):
    """Generate the grid plot."""

    l_tds.getTuple().SetMarkerStyle(20)
    l_tds.getTuple().SetMarkerSize(1)
    l_tds.Draw("X2:X1")
    tit = "MinDist = "+str(Sampler.TMaxiMinLHS.getMinDist(l_tds.getMatrix()))
    ROOT.gPad.GetPrimitive("__tdshisto__0").SetTitle("")
    ROOT.gPad.GetPrimitive("__tdshisto__0").GetXaxis().SetRangeUser(0., 1.)
    ROOT.gPad.GetPrimitive("__tdshisto__0").GetYaxis().SetRangeUser(0., 1.)
    l_lat.DrawLatex(0.25, 0.94, l_title+", "+tit)

# Canvas to produce the 2x1 plot to compare LHS designs
Can = ROOT.TCanvas("Can", "Can", 10, 32, 1200, 550)
pad = ROOT.TPad("pad", "pad", 0, 0.03, 1, 1)
pad.Draw()
pad.Divide(2, 1)

size = 20  # Size of the samples to be produced
lat = ROOT.TLatex()
lat.SetNDC()
lat.SetTextSize(0.038)  # To write titles

# Create dataserver and define the attributes
tds = DataServer.TDataServer("tds", "pouet")
tds.addAttribute(DataServer.TUniformDistribution("X1", 0, 1))
tds.getAttribute("X1").delShare()  # state to tds that it owns it
tds.addAttribute(DataServer.TUniformDistribution("X2", 0, 1))
tds.getAttribute("X2").delShare()  # state to tds that it owns it

# Generate the original LHS grid
sampl = Sampler.TSampling(tds, "lhs", size)
sampl.generateSample()

# Display it
pad.cd(1)
niceplot(tds, lat, "Original LHS")

# Transform the grid in a maximin LHD
# Set initial temperature to 0.1, c factor to 0.99 and loop limitations to 300
# following official recommandation in methodology manual
maxim = Sampler.TMaxiMinLHS(tds, size, 0.1, 0.99, 300, 300)
maxim.generateSample()

# Display it
pad.cd(2)
niceplot(tds, lat, "MaximMin LHS")

The macro very much looks like any other design-of-experiments generating macro above: the dataserver is created and the problem is defined along with the input variables. A LHS grid is generated through the use of TSampling and display in the first part of the canvas, calling a generic function niceplot defined on top of this macro. The new part comes with the following lines:

# Transform the grid in a maximin LHD
# Set initial temperature to 0.1, c factor to 0.99 and loop limitations to 300
# following official recommandation in methodology manual
maxim = Sampler.TMaxiMinLHS(tds, size, 0.1, 0.99, 300, 300)
maxim.generateSample()

The construction line of a TMaxiMinLHS is a bit different from the usual TSampling object: on top of a pointer to the dataserver, it requires the size of the grid to be generated and the main characteristic of the simulated annealing method to be used for the optimisation of the mindist criteria. A more complete discussion is done on this subject in [Bla17]

13.4.11.3. Graph

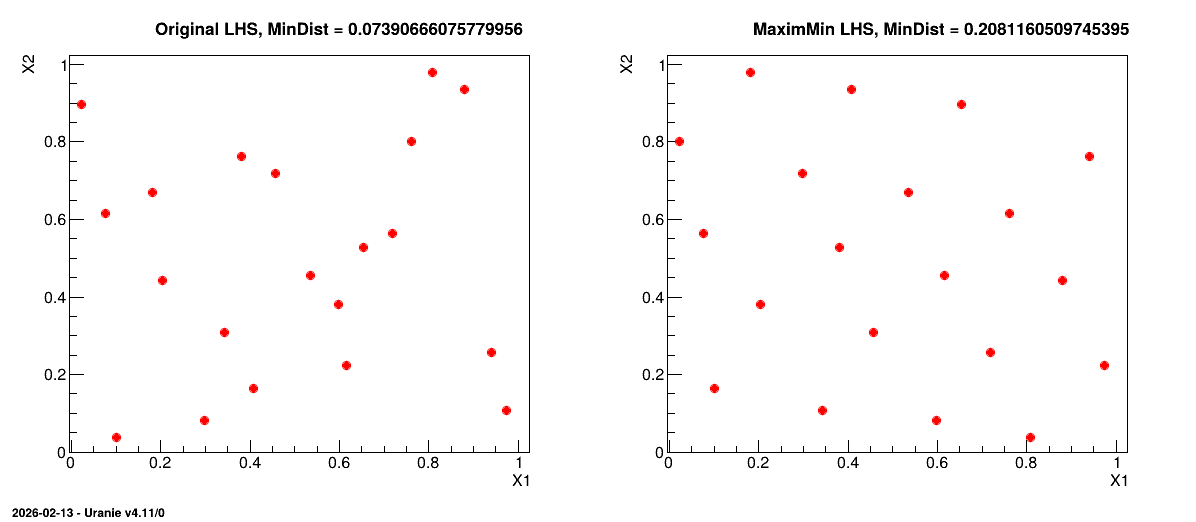

Figure 13.14 Graph of the macro “samplingMaxiMinLHSFromLHSGrid.py”
