13.3.1. Macro “samplingFlowrate.C”

13.3.1.1. Objective

The objective of this macro is to generate a design-of-experiments, of length 100 using the LHS method, with eight random attributes (\(r_{\omega}\), \(r\), \(T_u\), \(T_l\), \(H_u\), \(H_l\), \(L\), \(K_{\omega}\)) which obey uniform laws on specific intervals.

13.3.1.2. Macro Uranie

    // Define the DataServer
    TDataServer *tds = new TDataServer("tdsFlowrate", "Design of experiments for Flowrate");

    Int_t nS = 1000;

    // Add the study attributes
    tds->addAttribute( new TUniformDistribution("rw", 0.05, 0.15));
    tds->addAttribute( new TUniformDistribution("r", 100.0, 50000.0));
    tds->addAttribute( new TUniformDistribution("tu", 63070.0, 115600.0));
    tds->addAttribute( new TUniformDistribution("tl", 63.1, 116.0));
    tds->addAttribute( new TUniformDistribution("hu", 990.0, 1110.0));
    tds->addAttribute( new TUniformDistribution("hl", 700.0, 820.0));
    tds->addAttribute( new TUniformDistribution("l", 1120.0, 1680.0));
    tds->addAttribute( new TUniformDistribution("kw", 9855.0, 12045.0));


    // test Generateur de plan d'experience
    TSampling * sampling = new TSampling(tds, "lhs", nS);
    sampling->generateSample();

    tds->exportData("_flowrate_sampler_.dat");


    // Visualisation
    TCanvas  *Canvas = new TCanvas("Canvas", "Graph for the Macro samplingFlowrate",5,64,1270,667);
    gStyle->SetPalette(1);
    TPad *pad = new TPad("pad","pad",0, 0.03, 1, 1); pad->Draw();

    pad->Divide(2, 2);
    pad->cd(1); tds->draw("r");
    pad->cd(2); tds->draw("rw");
    pad->cd(3); tds->drawTufte("rw:r");
    pad->cd(4); tds->draw("rw:r:hu");

An uniform law is set for each attribute and then, linked to a the TDataServer:

    tds->addAttribute( new TUniformDistribution("rw", 0.05, 0.15));
    tds->addAttribute( new TUniformDistribution("r", 100.0, 50000.0));
    tds->addAttribute( new TUniformDistribution("tu", 63070.0, 115600.0));
    tds->addAttribute( new TUniformDistribution("tl", 63.1, 116.0));
    tds->addAttribute( new TUniformDistribution("hu", 990.0, 1110.0));
    tds->addAttribute( new TUniformDistribution("hl", 700.0, 820.0));
    tds->addAttribute( new TUniformDistribution("l", 1120.0, 1680.0));
    tds->addAttribute( new TUniformDistribution("kw", 9855.0, 12045.0));

The sampling is generated with the LHS method:

    TSampling * sampling = new TSampling(tds, "lhs", nS);
    sampling->generateSample();

Data are exported in an ASCII file:

    tds->exportData("_flowrate_sampler_.dat");

13.3.1.3. Graph

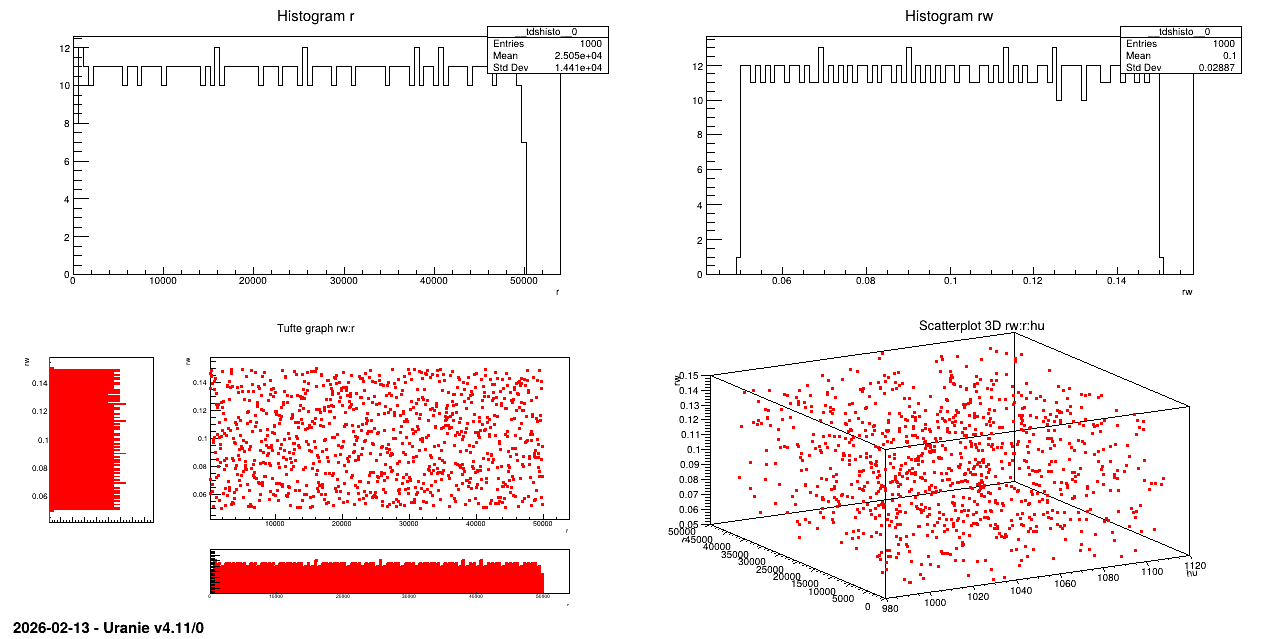

Figure 13.9 Graph of the macro “samplingFlowrate.C”
