13.3.10. Macro “samplingSpaceFilling.C”

13.3.10.1. Objective

This macro shows the usage of the TSpaceFilling class and the resulting design-of-experiments in three simple dataserver cases:

• with two uniform distributions

• with one uniform and one gaussian distributions

• with two gaussian distributions

For each of these configurations (represented in the following plot by a line), the three available algorithms are also tested. They are called:

• SaltelliA

• SaltelliB

• Cukier

This kind of design-of-experiments is not intented to be used regurlarly, it is requested only by few mechanisms like the FAST and RBD methods which rely on fourier transformations. This macro and, above all, the following plot, is made mainly for illustration purpose.

13.3.10.2. Macro Uranie

void GenerateAndDrawIt(TPad* pad, TDataServer *tds, TSpaceFilling *tsp, int nb, const char *title)
{
    pad->cd(nb+1);
    tds->deleteTuple();
    tsp->generateSample();
    tds->drawTufte("x2:x1");
    ((TPaveLabel*)(pad->GetPad(nb+1)->GetPrimitive("TPave")))->SetLabel("");
    ((TH1F*)gPad->GetPrimitive("htemp"))->SetTitle(title);
    gPad->Modified();
}

void samplingSpaceFilling(const string& figure="figure.png", const string& style="")
{
    //Attributes
    TUniformDistribution *att1 =  new TUniformDistribution("x1",10,12);
    TUniformDistribution *att2 =  new TUniformDistribution("x2",0,3);
    TNormalDistribution *nor1 =  new TNormalDistribution("x1",0,1);
    TNormalDistribution *nor2 =  new TNormalDistribution("x2",3,5);

    // Pointer to DataServer and Samplers
    TDataServer *tds[3];
    TSpaceFilling *tsp[9];
    string algoname[3]={"SaltelliA","SaltelliB","Cukier"};

    // Canvas to produce the 3x3 plot
    TCanvas *Can = new TCanvas("Can","Can",10,32,1200,1200);
    TPad *pad = new TPad("pad","pad",0, 0.03, 1, 1); pad->Draw();
    pad->Divide(3,3);
    int counter=0;

    for(unsigned int itds=0; itds<3; itds++)
    {
        // Create a DataServer to store new configuration (UnivsUni, GausvsUni, Gaus vs Gaus)
        tds[itds] = new TDataServer("test","test");
        switch(itds)
        {
            case 0: tds[itds]->addAttribute(att1);  tds[itds]->addAttribute(att2); break;
            case 1: tds[itds]->addAttribute(att1);  tds[itds]->addAttribute(nor2); break;
            case 2: tds[itds]->addAttribute(nor1);  tds[itds]->addAttribute(nor2); break;
        }

        // Looping over the 3 spacefilling algo available
        for(unsigned int ialg=0; ialg<3; ialg++)
        {
            // Instantiate the sampler
            switch(ialg)
            {
                case 0: tsp[counter] = new TSpaceFilling(tds[itds], "srs", 1000, TSpaceFilling::kSaltelliA); break;
                case 1: tsp[counter] = new TSpaceFilling(tds[itds], "srs", 1000, TSpaceFilling::kSaltelliB); break;
                case 2: tsp[counter] = new TSpaceFilling(tds[itds], "srs", 1000, TSpaceFilling::kCukier);  break;
            }
            //Draw with correct legend
            GenerateAndDrawIt(pad, tds[itds], tsp[counter], counter, algoname[ialg].c_str());
                counter++;
        }
    }
}

13.3.10.3. Graph

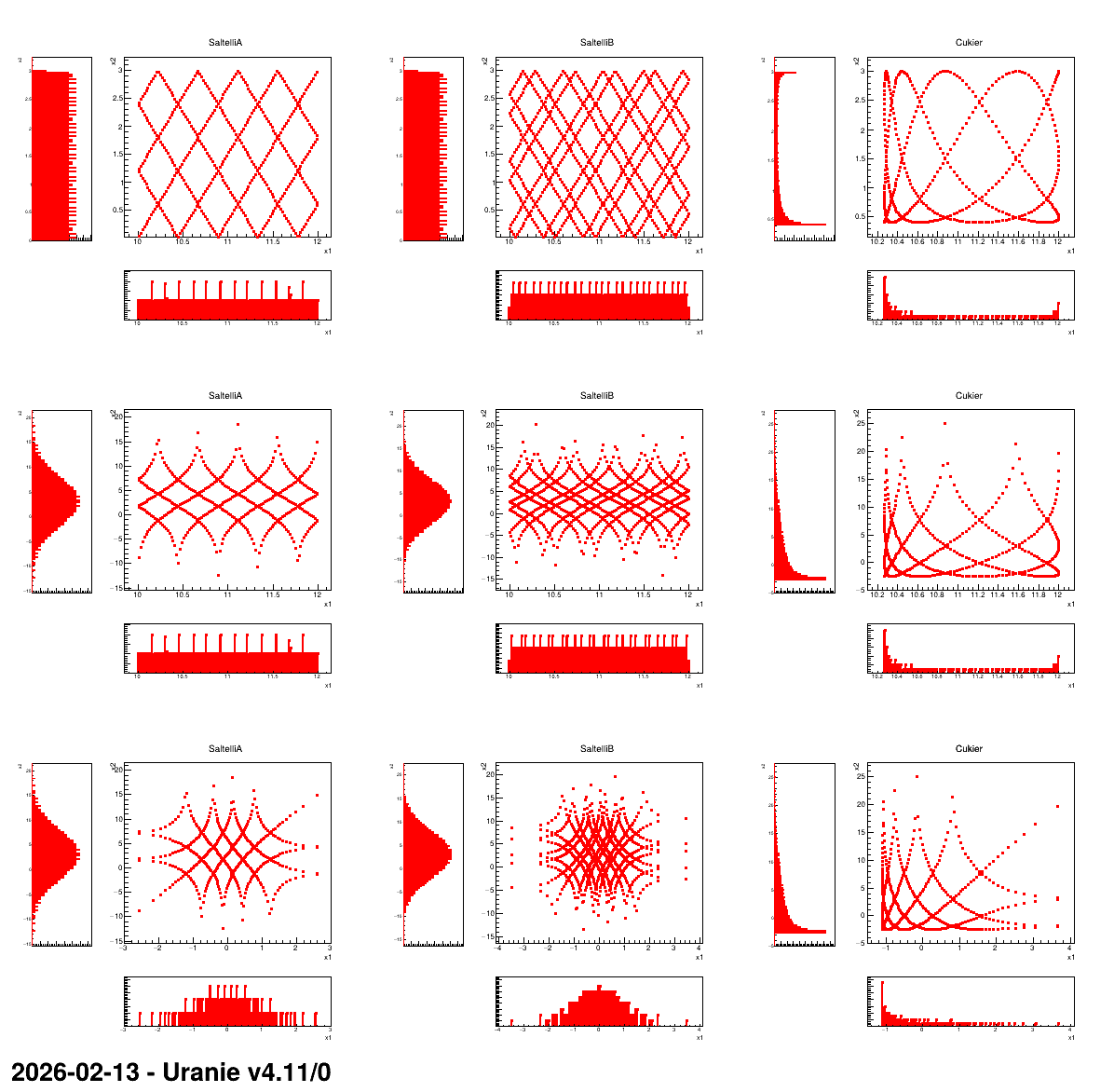

Figure 13.13 Graph of the macro “samplingSpaceFilling.C”
