13.5.19. Macro “sensitivityHSICFunctionFlowrate.C”
13.5.19.1. Objective
The objective of this macro is to perform a sensitivity analysis using the HSIC method on a set of
eight parameters used in the flowrateModel model described in
Presentation of the problem.
13.5.19.2. Macro Uranie
void sensitivityHSICFunctionFlowrate(const string& figure="figure.png", const string& style="",
const string& filename="", const string& treename="", int seed=0)
{
gROOT->LoadMacro("UserFunctions.C");
// Define the DataServer
TDataServer *tds = new TDataServer("tdsflowreate", "DataBase flowreate");
tds->addAttribute( new TUniformDistribution("rw", 0.05, 0.15));
tds->addAttribute( new TUniformDistribution("r", 100.0, 50000.0));
tds->addAttribute( new TUniformDistribution("tu", 63070.0, 115600.0));
tds->addAttribute( new TUniformDistribution("tl", 63.1, 116.0));
tds->addAttribute( new TUniformDistribution("hu", 990.0, 1110.0));
tds->addAttribute( new TUniformDistribution("hl", 700.0, 820.0));
tds->addAttribute( new TUniformDistribution("l", 1120.0, 1680.0));
tds->addAttribute( new TUniformDistribution("kw", 9855.0, 12045.0));
// Generation of the sample (it can be a given sample).
Int_t nS = 500;
TSampling *sampling = new TSampling(tds, "lhs", nS);
sampling->generateSample();
TLauncherFunction * tlf = new TLauncherFunction(tds, "flowrateModel");
tlf->setDrawProgressBar(kFALSE);
tlf->run();
// Create a THSIC object, compute indexes and print results
THSIC * thsic = new THSIC(tds, "rw:r:tu:tl:hu:hl:l:kw","flowrateModel");
thsic->computeIndexes("quiet");
thsic->getResultTuple()->SetScanField(60);
thsic->getResultTuple()->Scan("Out:Inp:Method:Order:Value:CILower:CIUpper", "","colsize=5 col=6:8::9:8:8:8");
// Print HSIC indexes
TCanvas *can = new TCanvas("c1", "Graph for the Macro sensitivityHSICFunctionFlowrate",5,64,1270,667);
thsic->drawIndexes("Flowrate", "", "hist,first,nonewcanv");
}
The function flowrateModel is loaded from the macro UserFunctions.C (the file can be found in
${URANIESYS}/share/uranie/macros)
gROOT->LoadMacro("UserFunctions.C");
Each parameter is related to the TDataServer as a TAttribute and obeys an uniform law on specific interval
// Define the DataServer
TDataServer *tds = new TDataServer("tdsflowreate", "DataBase flowreate");
tds->addAttribute( new TUniformDistribution("rw", 0.05, 0.15));
tds->addAttribute( new TUniformDistribution("r", 100.0, 50000.0));
tds->addAttribute( new TUniformDistribution("tu", 63070.0, 115600.0));
tds->addAttribute( new TUniformDistribution("tl", 63.1, 116.0));
tds->addAttribute( new TUniformDistribution("hu", 990.0, 1110.0));
tds->addAttribute( new TUniformDistribution("hl", 700.0, 820.0));
tds->addAttribute( new TUniformDistribution("l", 1120.0, 1680.0));
tds->addAttribute( new TUniformDistribution("kw", 9855.0, 12045.0));
HSIC does not need a specific DOE, it works with a given sample. We generate a sample with TSampling
and we evaluate it using TLauncherFunction
Int_t nS = 500;
TSampling *sampling = new TSampling(tds, "lhs", nS);
sampling->generateSample();
TLauncherFunction * tlf = new TLauncherFunction(tds, "flowrateModel");
tlf->setDrawProgressBar(kFALSE);
tlf->run();
To instantiate the THSIC object, one uses the TDataServer, the name of the input and output variables:
THSIC * thsic = new THSIC(tds, "rw:r:tu:tl:hu:hl:l:kw","flowrateModel");
Computation of sensitivity indexes:
thsic->computeIndexes("quiet");
It will produce one plots containing the HSIC indexes and the p-value to test the Independance between inputs and outputs.The console is also shown below for completness.
13.5.19.3. Graph

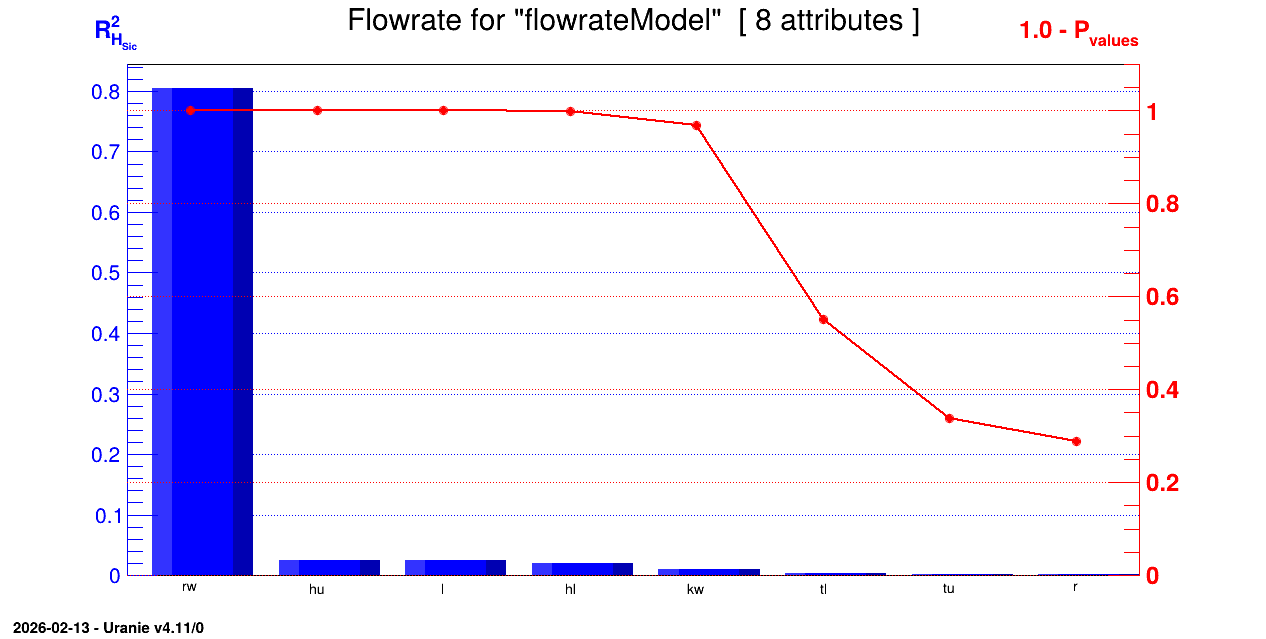

Figure 13.35 Graph of the macro “sensitivityHSICFunctionFlowrate.C”
13.5.19.4. Console
--- Uranie v4.11/0 --- Developed with ROOT (6.36.06)
Copyright (C) 2013-2026 CEA/DES
Contact: support-uranie@cea.fr
Date: Thu Feb 12, 2026
*************************************************************************************
* Row * Out * Inp * Metho * Order * Value * CILower * CIUpper *
*************************************************************************************
* 0 * flowra * rw * HSic * R2HSic * 0.804431 * -1 * -1 *
* 1 * flowra * rw * HSic * HSic * 0.072723 * -1 * -1 *
* 2 * flowra * rw * HSic * pValues * 6.8e-106 * -1 * -1 *
* 3 * flowra * r * HSic * R2HSic * 0.002238 * -1 * -1 *
* 4 * flowra * r * HSic * HSic * 0.000202 * -1 * -1 *
* 5 * flowra * r * HSic * pValues * 0.712174 * -1 * -1 *
* 6 * flowra * tu * HSic * R2HSic * 0.002528 * -1 * -1 *
* 7 * flowra * tu * HSic * HSic * 0.000228 * -1 * -1 *
* 8 * flowra * tu * HSic * pValues * 0.662668 * -1 * -1 *
* 9 * flowra * tl * HSic * R2HSic * 0.003806 * -1 * -1 *
* 10 * flowra * tl * HSic * HSic * 0.000344 * -1 * -1 *
* 11 * flowra * tl * HSic * pValues * 0.449068 * -1 * -1 *
* 12 * flowra * hu * HSic * R2HSic * 0.025554 * -1 * -1 *
* 13 * flowra * hu * HSic * HSic * 0.002309 * -1 * -1 *
* 14 * flowra * hu * HSic * pValues * 3.13e-05 * -1 * -1 *
* 15 * flowra * hl * HSic * R2HSic * 0.020243 * -1 * -1 *
* 16 * flowra * hl * HSic * HSic * 0.001829 * -1 * -1 *
* 17 * flowra * hl * HSic * pValues * 0.000445 * -1 * -1 *
* 18 * flowra * l * HSic * R2HSic * 0.024934 * -1 * -1 *
* 19 * flowra * l * HSic * HSic * 0.002253 * -1 * -1 *
* 20 * flowra * l * HSic * pValues * 5.64e-05 * -1 * -1 *
* 21 * flowra * kw * HSic * R2HSic * 0.010567 * -1 * -1 *
* 22 * flowra * kw * HSic * HSic * 0.000955 * -1 * -1 *
* 23 * flowra * kw * HSic * pValues * 0.032459 * -1 * -1 *
*************************************************************************************
