13.5.10. Macro “sensitivitySobolFunctionFlowrateRunner.C”

13.5.10.1. Objective

The objective of this macro is to perform Sobol sensitivity analysis on a set of eight parameters used in the flowrateModel model described in Presentation of the problem, but this time using the Relauncher architecture.

13.5.10.2. Macro Uranie

    gROOT->LoadMacro("UserFunctions.C");

    // Define the attributes
    TUniformDistribution rw("rw", 0.05, 0.15);
    TUniformDistribution r("r", 100.0, 50000.0);
    TUniformDistribution tu("tu", 63070.0, 115600.0);
    TUniformDistribution tl("tl", 63.1, 116.0);
    TUniformDistribution hu("hu", 990.0, 1110.0);
    TUniformDistribution hl("hl", 700.0, 820.0);
    TUniformDistribution l("l", 1120.0, 1680.0);
    TUniformDistribution kw("kw", 9855.0, 12045.0);

    // Create the evaluator
    TCIntEval code("flowrateModel");
    // Create output attribute
    TAttribute yout("flowrateModel");
    // Provide input/output attributes to the assessor
    code.setInputs(8, &rw, &r, &tu, &tl, &hu, &hl, &l, &kw);
    code.setOutputs(1, &yout);

    TSequentialRun run(&code); // To be replaced to distribute the computation
    run.startSlave();
    if( run.onMaster())
    {
        // Create the dataserver
        TDataServer *tds = new TDataServer("sobol", "foo bar pouet chocolat");
        tds->addAttribute(&rw);
        tds->addAttribute(&r);
        tds->addAttribute(&tu);
        tds->addAttribute(&tl);
        tds->addAttribute(&hu);
        tds->addAttribute(&hl);
        tds->addAttribute(&l);
        tds->addAttribute(&kw);

        // Create the sobol object
        Int_t ns = 100000;
        TSobol * tsobol = new TSobol(tds, &run, ns);
        tsobol->setDrawProgressBar(kFALSE);
        tsobol->computeIndexes();

        TCanvas *cc = new TCanvas("c1", "histgramme",5,64,1270,667);
        TPad *pad = new TPad("pad","pad",0, 0.03, 1, 1); pad->Draw();
        pad->Divide(2,1);
        pad->cd(1);
        tsobol->drawIndexes("Flowrate", "", "nonewcanv,hist,all");

        pad->cd(2);
        tsobol->drawIndexes("Flowrate", "", "nonewcanv,pie,first");

        tds->exportData("_sobol_launching_.dat");
    }

The function flowrateModel is loaded from the macro UserFunctions.C (the file can be found in ${URANIESYS}/share/uranie/macros)

    gROOT->LoadMacro("UserFunctions.C");

Each parameter is related to the TDataServer as a TAttribute and obeys an uniform law on specific interval:

    // Define the attributes
    TUniformDistribution rw("rw", 0.05, 0.15);
    TUniformDistribution r("r", 100.0, 50000.0);
    TUniformDistribution tu("tu", 63070.0, 115600.0);
    TUniformDistribution tl("tl", 63.1, 116.0);
    TUniformDistribution hu("hu", 990.0, 1110.0);
    TUniformDistribution hl("hl", 700.0, 820.0);
    TUniformDistribution l("l", 1120.0, 1680.0);
    TUniformDistribution kw("kw", 9855.0, 12045.0);

The interface to the function is then defined, using the Relauncher interface, through a TCIntEval object and a sequential runner:

    // Create the evaluator
    TCIntEval code("flowrateModel");
    // Create output attribute
    TAttribute yout("flowrateModel");
    // Provide input/output attributes to the assessor
    code.setInputs(8, &rw, &r, &tu, &tl, &hu, &hl, &l, &kw);
    code.setOutputs(1, &yout);

    TSequentialRun run(&code); // To be replaced to distribute the computation
    run.startSlave();

To instantiate the TSobol, one uses the TDataServer, a pointer to the runner and the number of samplings needed to perform sensitivity analysis (here ns=600):

    TSobol * tsobol = new TSobol(tds, &run, ns);

Computation of the sensitivity indexes:

    tsobol->computeIndexes();

Data are exported from the TDataServer to an ASCII file:

    tds->exportData("_sobol_launching_.dat");

13.5.10.3. Graph

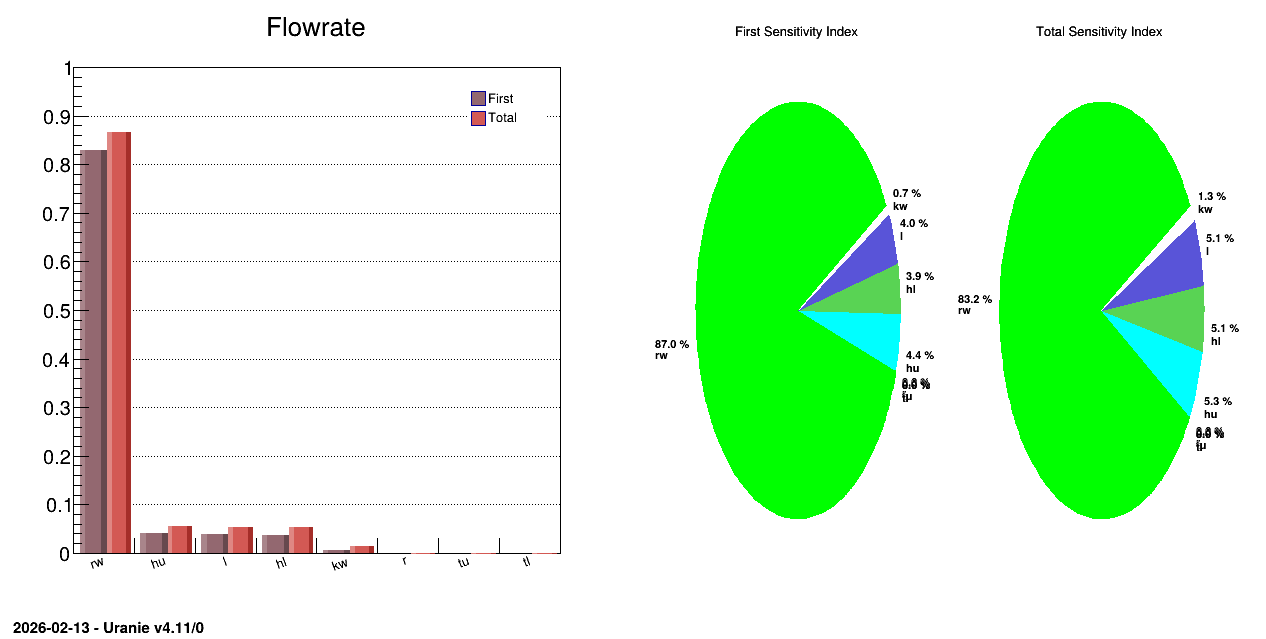

Figure 13.26 Graph of the macro “sensitivitySobolFunctionFlowrateRunner.C”

13.5.10.4. Console

--- Uranie v4.11/0 --- Developed with ROOT (6.36.06)
                      Copyright (C) 2013-2026 CEA/DES
                      Contact: support-uranie@cea.fr
                      Date: Thu Feb 12, 2026

 <URANIE::WARNING>
 <URANIE::WARNING> *** URANIE WARNING ***
 <URANIE::WARNING> *** File[${SOURCEDIR}/dataSERVER/souRCE/TDataServer.cxx] Line[8531]
 <URANIE::WARNING> TDataServer::getTuple Error : There is no tree!
 <URANIE::WARNING> *** END of URANIE WARNING ***
 <URANIE::WARNING>
 <URANIE::INFO>
 <URANIE::INFO> *** URANIE INFORMATION ***
 <URANIE::INFO> *** File[${SOURCEDIR}/meTIER/sampler/souRCE/TSamplerStochastic.cxx] Line[66]
 <URANIE::INFO> TSamplerStochastic::init: the TDS [sobol] contains data: we need to empty it !
 <URANIE::INFO> *** END of URANIE INFORMATION ***
 <URANIE::INFO>
 ** Case of Output atty [flowrateModel]  nSimPerIndex 10000
 ** Input att [rw] First [0.830033] Total Order[0.865762]
 ** Input att [r] First [0] Total Order[0.000102212]
 ** Input att [tu] First [0] Total Order[0.0001]
 ** Input att [tl] First [0] Total Order[0.000110756]
 ** Input att [hu] First [0.0417298] Total Order[0.0554922]
 ** Input att [hl] First [0.0367345] Total Order[0.0526188]
 ** Input att [l] First [0.0384214] Total Order[0.0535728]
 ** Input att [kw] First [0.00669831] Total Order[0.0132316]
