13.6.19. Macro “sensitivityHSICFunctionFlowrate.py”
13.6.19.1. Objective
The objective of this macro is to perform a sensitivity analysis using the HSIC method on a set of
eight parameters used in the flowrateModel model described in
Presentation of the problem.
13.6.19.2. Macro Uranie
"""
Example of HSIC method applied to flowrate
"""
from URANIE import DataServer, Sensitivity, Launcher, Sampler
import ROOT
ROOT.gROOT.LoadMacro("UserFunctions.C")
# Define the DataServer
tds = DataServer.TDataServer("tdsflowrate", "DataBase flowrate")
tds.addAttribute(DataServer.TUniformDistribution("rw", 0.05, 0.15))
tds.addAttribute(DataServer.TUniformDistribution("r", 100.0, 50000.0))
tds.addAttribute(DataServer.TUniformDistribution("tu", 63070.0, 115600.0))
tds.addAttribute(DataServer.TUniformDistribution("tl", 63.1, 116.0))
tds.addAttribute(DataServer.TUniformDistribution("hu", 990.0, 1110.0))
tds.addAttribute(DataServer.TUniformDistribution("hl", 700.0, 820.0))
tds.addAttribute(DataServer.TUniformDistribution("l", 1120.0, 1680.0))
tds.addAttribute(DataServer.TUniformDistribution("kw", 9855.0, 12045.0))
# Generation of the sample (it can be a given sample).
nS = 500
sampling = Sampler.TSampling(tds, "lhs", nS)
sampling.generateSample()
tlf = Launcher.TLauncherFunction(tds, "flowrateModel")
tlf.setDrawProgressBar(False)
tlf.run()
# Create a THSIC object, compute indexes and print results
thsic = Sensitivity.THSIC(tds, "rw:r:tu:tl:hu:hl:l:kw","flowrateModel")
thsic.computeIndexes("quiet")
thsic.getResultTuple().SetScanField(60)
thsic.getResultTuple().Scan("Out:Inp:Method:Order:Value:CILower:CIUpper","","colsize=5 col=6:8::9:8:8:8")
# Print HSIC indexes
can = ROOT.TCanvas("c1", "Graph sensitivityHSICFunctionFlowrate", 5, 64, 1270, 667)
thsic.drawIndexes("Flowrate", "", "hist, first, nonewcanv")
The function flowrateModel is loaded from the macro UserFunctions.C (the file can be found in
${URANIESYS}/share/uranie/macros)
ROOT.gROOT.LoadMacro("UserFunctions.C")
Each parameter is related to the TDataServer as a TAttribute and obeys an uniform law on specific interval
# Define the DataServer
tds = DataServer.TDataServer("tdsflowrate", "DataBase flowrate")
tds.addAttribute(DataServer.TUniformDistribution("rw", 0.05, 0.15))
tds.addAttribute(DataServer.TUniformDistribution("r", 100.0, 50000.0))
tds.addAttribute(DataServer.TUniformDistribution("tu", 63070.0, 115600.0))
tds.addAttribute(DataServer.TUniformDistribution("tl", 63.1, 116.0))
tds.addAttribute(DataServer.TUniformDistribution("hu", 990.0, 1110.0))
tds.addAttribute(DataServer.TUniformDistribution("hl", 700.0, 820.0))
tds.addAttribute(DataServer.TUniformDistribution("l", 1120.0, 1680.0))
tds.addAttribute(DataServer.TUniformDistribution("kw", 9855.0, 12045.0))
HSIC does not need a specific DOE, it works with a given sample. We generate a sample with TSampling
and we evaluate it using TLauncherFunction
nS = 500
sampling = Sampler.TSampling(tds, "lhs", nS)
sampling.generateSample()
tlf = Launcher.TLauncherFunction(tds, "flowrateModel")
tlf.setDrawProgressBar(False)
tlf.run()
To instantiate the THSIC object, one uses the TDataServer, the name of the input and output variables:
thsic = Sensitivity.THSIC(tds, "rw:r:tu:tl:hu:hl:l:kw","flowrateModel")
Computation of sensitivity indexes:
thsic.computeIndexes("quiet")
It will produce one plots containing the HSIC indexes and the p-value to test the Independance between inputs and outputs.The console is also shown below for completness.
13.6.19.3. Graph

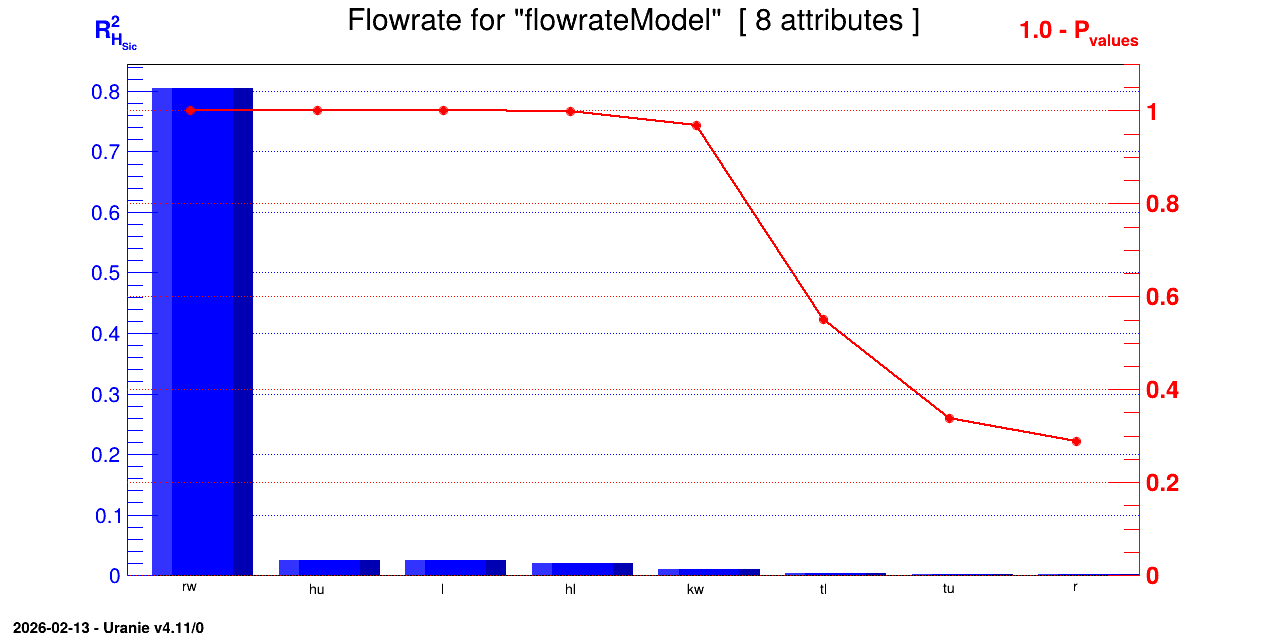

Figure 13.35 Graph of the macro “sensitivityHSICFunctionFlowrate.py”
13.6.19.4. Console
--- Uranie v4.11/0 --- Developed with ROOT (6.36.06)
Copyright (C) 2013-2026 CEA/DES
Contact: support-uranie@cea.fr
Date: Thu Feb 12, 2026
*************************************************************************************
* Row * Out * Inp * Metho * Order * Value * CILower * CIUpper *
*************************************************************************************
* 0 * flowra * rw * HSic * R2HSic * 0.804431 * -1 * -1 *
* 1 * flowra * rw * HSic * HSic * 0.072723 * -1 * -1 *
* 2 * flowra * rw * HSic * pValues * 6.8e-106 * -1 * -1 *
* 3 * flowra * r * HSic * R2HSic * 0.002238 * -1 * -1 *
* 4 * flowra * r * HSic * HSic * 0.000202 * -1 * -1 *
* 5 * flowra * r * HSic * pValues * 0.712174 * -1 * -1 *
* 6 * flowra * tu * HSic * R2HSic * 0.002528 * -1 * -1 *
* 7 * flowra * tu * HSic * HSic * 0.000228 * -1 * -1 *
* 8 * flowra * tu * HSic * pValues * 0.662668 * -1 * -1 *
* 9 * flowra * tl * HSic * R2HSic * 0.003806 * -1 * -1 *
* 10 * flowra * tl * HSic * HSic * 0.000344 * -1 * -1 *
* 11 * flowra * tl * HSic * pValues * 0.449068 * -1 * -1 *
* 12 * flowra * hu * HSic * R2HSic * 0.025554 * -1 * -1 *
* 13 * flowra * hu * HSic * HSic * 0.002309 * -1 * -1 *
* 14 * flowra * hu * HSic * pValues * 3.13e-05 * -1 * -1 *
* 15 * flowra * hl * HSic * R2HSic * 0.020243 * -1 * -1 *
* 16 * flowra * hl * HSic * HSic * 0.001829 * -1 * -1 *
* 17 * flowra * hl * HSic * pValues * 0.000445 * -1 * -1 *
* 18 * flowra * l * HSic * R2HSic * 0.024934 * -1 * -1 *
* 19 * flowra * l * HSic * HSic * 0.002253 * -1 * -1 *
* 20 * flowra * l * HSic * pValues * 5.64e-05 * -1 * -1 *
* 21 * flowra * kw * HSic * R2HSic * 0.010567 * -1 * -1 *
* 22 * flowra * kw * HSic * HSic * 0.000955 * -1 * -1 *
* 23 * flowra * kw * HSic * pValues * 0.032459 * -1 * -1 *
*************************************************************************************
