13.6.10. Macro “sensitivitySobolFunctionFlowrateRunner.py”

13.6.10.1. Objective

The objective of this macro is to perform Sobol sensitivity analysis on a set of eight parameters used in the flowrateModel model described in Presentation of the problem, but this time using the Relauncher architecture.

13.6.10.2. Macro Uranie

"""
Example of Sobol estimation for the flowrate function with Relauncher approach
"""
from URANIE import DataServer, Relauncher, Sensitivity
import ROOT

ROOT.gROOT.LoadMacro("UserFunctions.C")

# Define the DataServer
rw = DataServer.TUniformDistribution("rw", 0.05, 0.15)
r = DataServer.TUniformDistribution("r", 100.0, 50000.0)
tu = DataServer.TUniformDistribution("tu", 63070.0, 115600.0)
tl = DataServer.TUniformDistribution("tl", 63.1, 116.0)
hu = DataServer.TUniformDistribution("hu", 990.0, 1110.0)
hl = DataServer.TUniformDistribution("hl", 700.0, 820.0)
lvar = DataServer.TUniformDistribution("l", 1120.0, 1680.0)
kw = DataServer.TUniformDistribution("kw", 9855.0, 12045.0)

# Create the evaluator
code = Relauncher.TCIntEval("flowrateModel")
# Create output attribute
yout = DataServer.TAttribute("flowrateModel")
# Provide input/output attributes to the assessor
code.addInput(rw)
code.addInput(r)
code.addInput(tu)
code.addInput(tl)
code.addInput(hu)
code.addInput(hl)
code.addInput(lvar)
code.addInput(kw)
code.addOutput(yout)

run = Relauncher.TSequentialRun(code)  # Replace to distribute computation
run.startSlave()
if run.onMaster():
    # Create the dataserver
    tds = DataServer.TDataServer("sobol", "foo bar pouet chocolat")
    code.addAllInputs(tds)

    # Create the sobol object
    ns = 100000
    tsobol = Sensitivity.TSobol(tds, run, ns)
    tsobol.setDrawProgressBar(ROOT.kFALSE)
    tsobol.computeIndexes()

    cc = ROOT.TCanvas("c1", "histgramme", 5, 64, 1270, 667)
    pad = ROOT.TPad("pad", "pad", 0, 0.03, 1, 1)
    pad.Draw()
    pad.Divide(2, 1)
    pad.cd(1)
    tsobol.drawIndexes("Flowrate", "", "nonewcanv, hist, all")

    pad.cd(2)
    tsobol.drawIndexes("Flowrate", "", "nonewcanv, pie, first")

    tds.exportData("_sobol_launching_.dat")

The function flowrateModel is loaded from the macro UserFunctions.C (the file can be found in ${URANIESYS}/share/uranie/macros)

ROOT.gROOT.LoadMacro("UserFunctions.C")

Each parameter is related to the TDataServer as a TAttribute and obeys an uniform law on specific interval:

# Define the DataServer
rw = DataServer.TUniformDistribution("rw", 0.05, 0.15)
r = DataServer.TUniformDistribution("r", 100.0, 50000.0)
tu = DataServer.TUniformDistribution("tu", 63070.0, 115600.0)
tl = DataServer.TUniformDistribution("tl", 63.1, 116.0)
hu = DataServer.TUniformDistribution("hu", 990.0, 1110.0)
hl = DataServer.TUniformDistribution("hl", 700.0, 820.0)
lvar = DataServer.TUniformDistribution("l", 1120.0, 1680.0)
kw = DataServer.TUniformDistribution("kw", 9855.0, 12045.0)

The interface to the function is then defined, using the Relauncher interface, through a TCIntEval object and a sequential runner:

# Create the evaluator
code = Relauncher.TCIntEval("flowrateModel")
# Create output attribute
yout = DataServer.TAttribute("flowrateModel")
# Provide input/output attributes to the assessor
code.addInput(rw)
code.addInput(r)
code.addInput(tu)
code.addInput(tl)
code.addInput(hu)
code.addInput(hl)
code.addInput(lvar)
code.addInput(kw)
code.addOutput(yout)

run = Relauncher.TSequentialRun(code)  # Replace to distribute computation
run.startSlave()

To instantiate the TSobol, one uses the TDataServer, a pointer to the runner and the number of samplings needed to perform sensitivity analysis (here ns=600):

tsobol = Sensitivity.TSobol(tds, run, ns)

Computation of the sensitivity indexes:

tsobol.computeIndexes()

Data are exported from the TDataServer to an ASCII file:

tds.exportData("_sobol_launching_.dat")

13.6.10.3. Graph

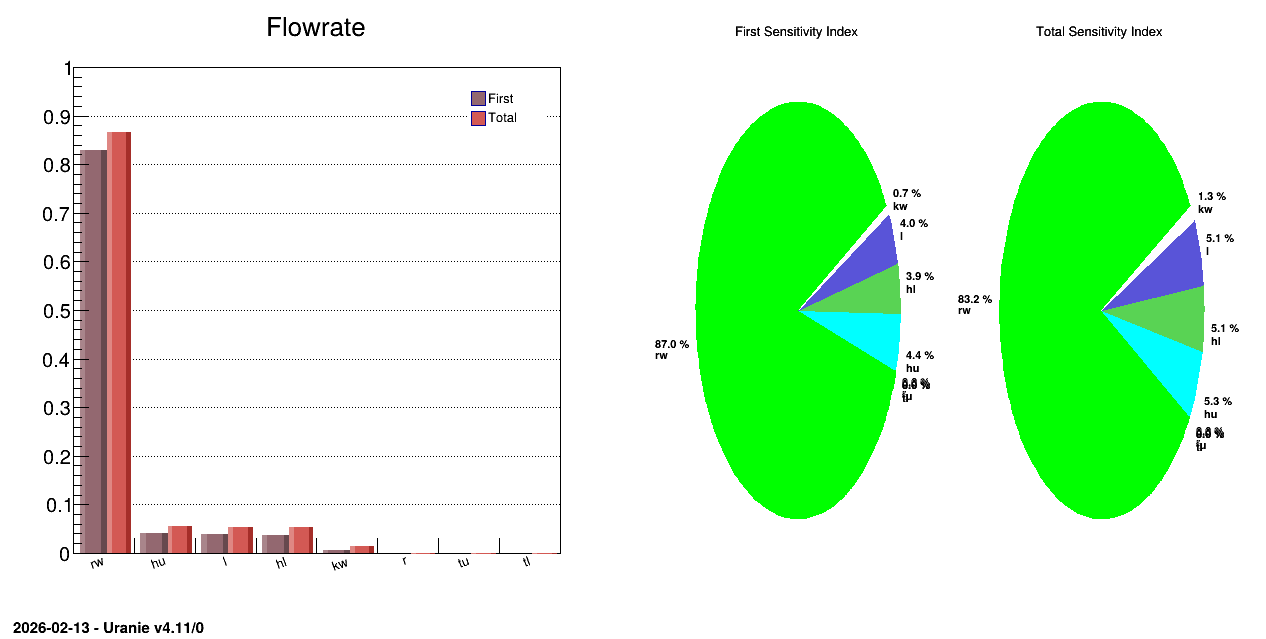

../../_images/sensitivitySobolFunctionFlowrateRunner.png — Figure 13.26 Graph of the macro **“sensitivitySobolFunctionFlowrateRunner.py”**

13.6.10.4. Console

--- Uranie v4.11/0 --- Developed with ROOT (6.36.06)
                      Copyright (C) 2013-2026 CEA/DES
                      Contact: support-uranie@cea.fr
                      Date: Thu Feb 12, 2026

 <URANIE::WARNING>
 <URANIE::WARNING> *** URANIE WARNING ***
 <URANIE::WARNING> *** File[${SOURCEDIR}/dataSERVER/souRCE/TDataServer.cxx] Line[8531]
 <URANIE::WARNING> TDataServer::getTuple Error : There is no tree!
 <URANIE::WARNING> *** END of URANIE WARNING ***
 <URANIE::WARNING>
 <URANIE::INFO>
 <URANIE::INFO> *** URANIE INFORMATION ***
 <URANIE::INFO> *** File[${SOURCEDIR}/meTIER/sampler/souRCE/TSamplerStochastic.cxx] Line[66]
 <URANIE::INFO> TSamplerStochastic::init: the TDS [sobol] contains data: we need to empty it !
 <URANIE::INFO> *** END of URANIE INFORMATION ***
 <URANIE::INFO>
 ** Case of Output atty [flowrateModel]  nSimPerIndex 10000
 ** Input att [rw] First [0.830033] Total Order[0.865762]
 ** Input att [r] First [0] Total Order[0.000102212]
 ** Input att [tu] First [0] Total Order[0.0001]
 ** Input att [tl] First [0] Total Order[0.000110756]
 ** Input att [hu] First [0.0417298] Total Order[0.0554922]
 ** Input att [hl] First [0.0367345] Total Order[0.0526188]
 ** Input att [l] First [0.0384214] Total Order[0.0535728]
 ** Input att [kw] First [0.00669831] Total Order[0.0132316]
